Before You Order
A TRIAC Dimmer Switch Is Required
Every version of this chandelier is built for TRIAC dimming. It will not run correctly on an ordinary on/off switch or a standard rotary dimmer, and the wrong dimmer causes flicker, buzzing, and damage to the driver.
Fit a TRIAC, sometimes sold as thyristor or leading edge, wall dimmer rated for the total wattage of your configuration. That is roughly 5W per panel, so a 28-panel version needs a dimmer rated well above 140W.
Measure Your Ceiling First
The larger configurations are extremely tall. The 18 and 28 panel versions drop 157.5″, just over 13 feet, and the 12 panel version drops 118″, nearly 10 feet.

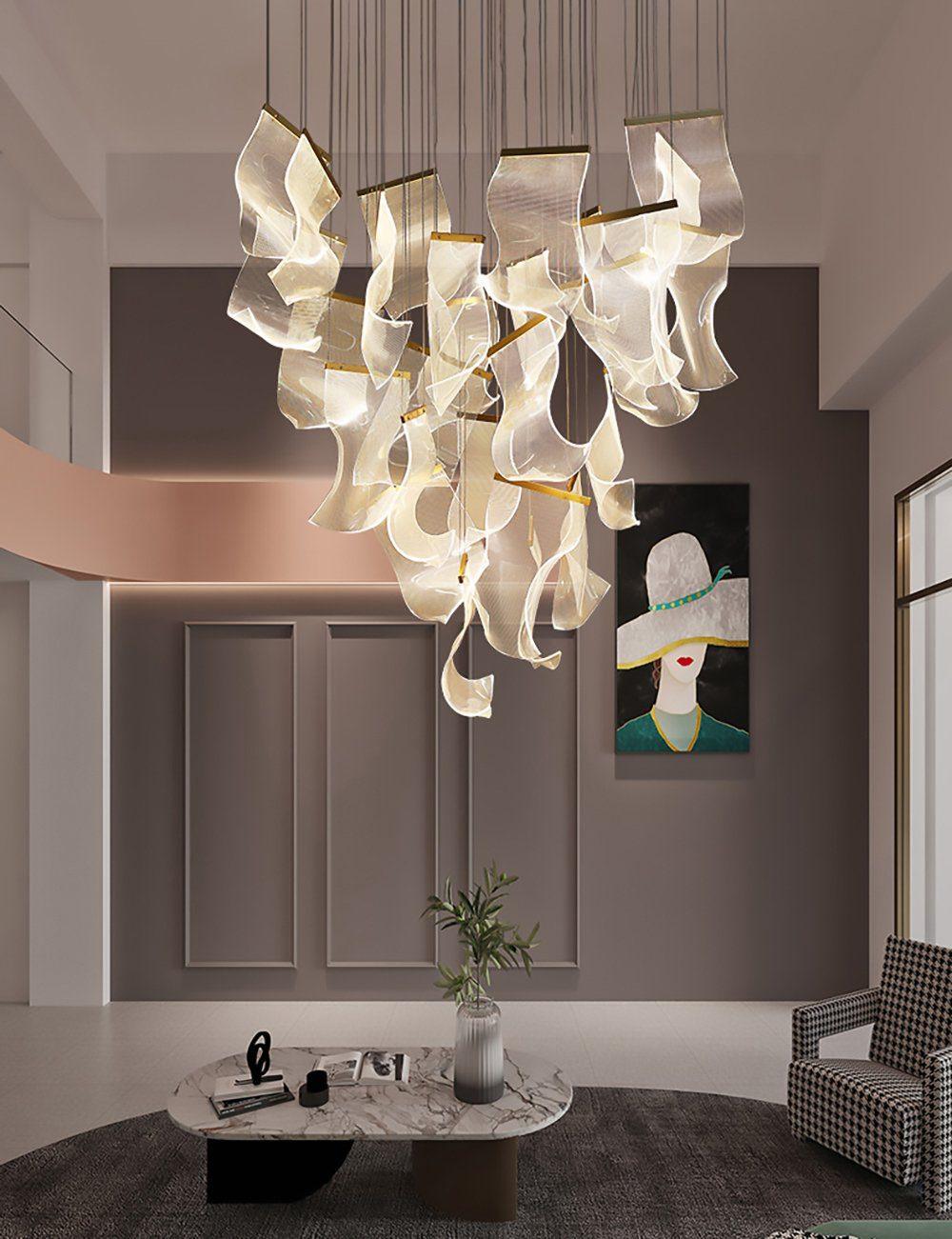

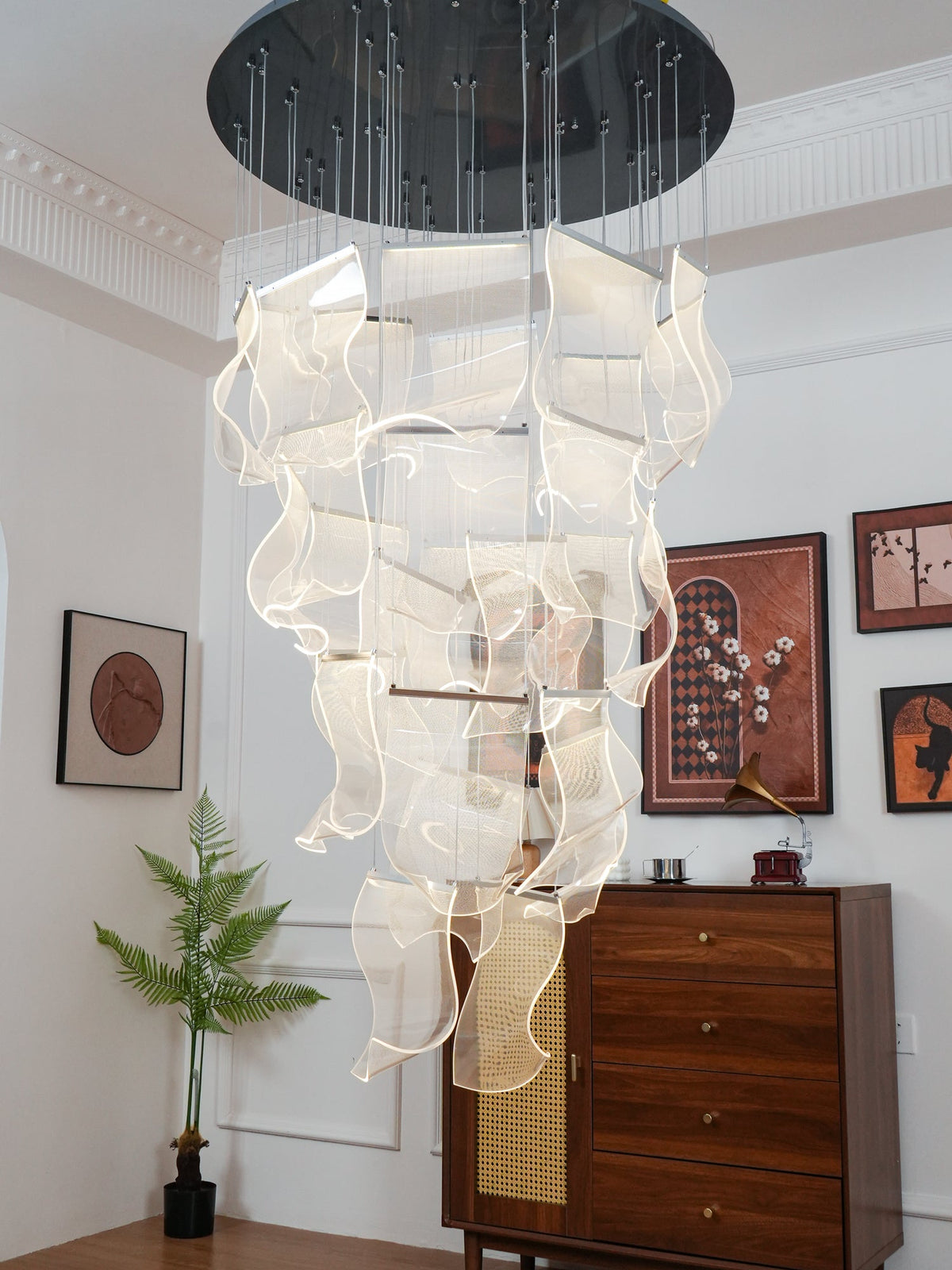

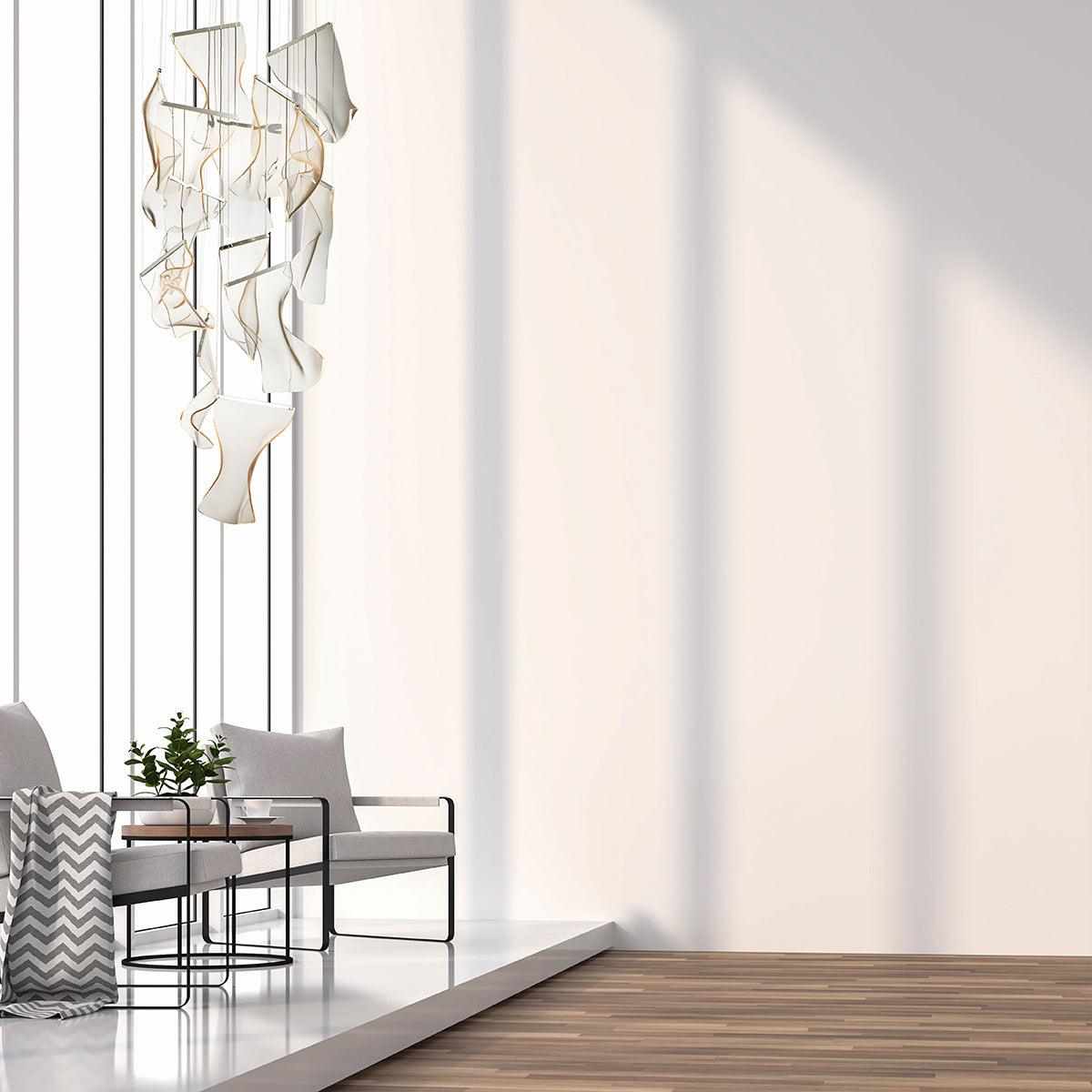

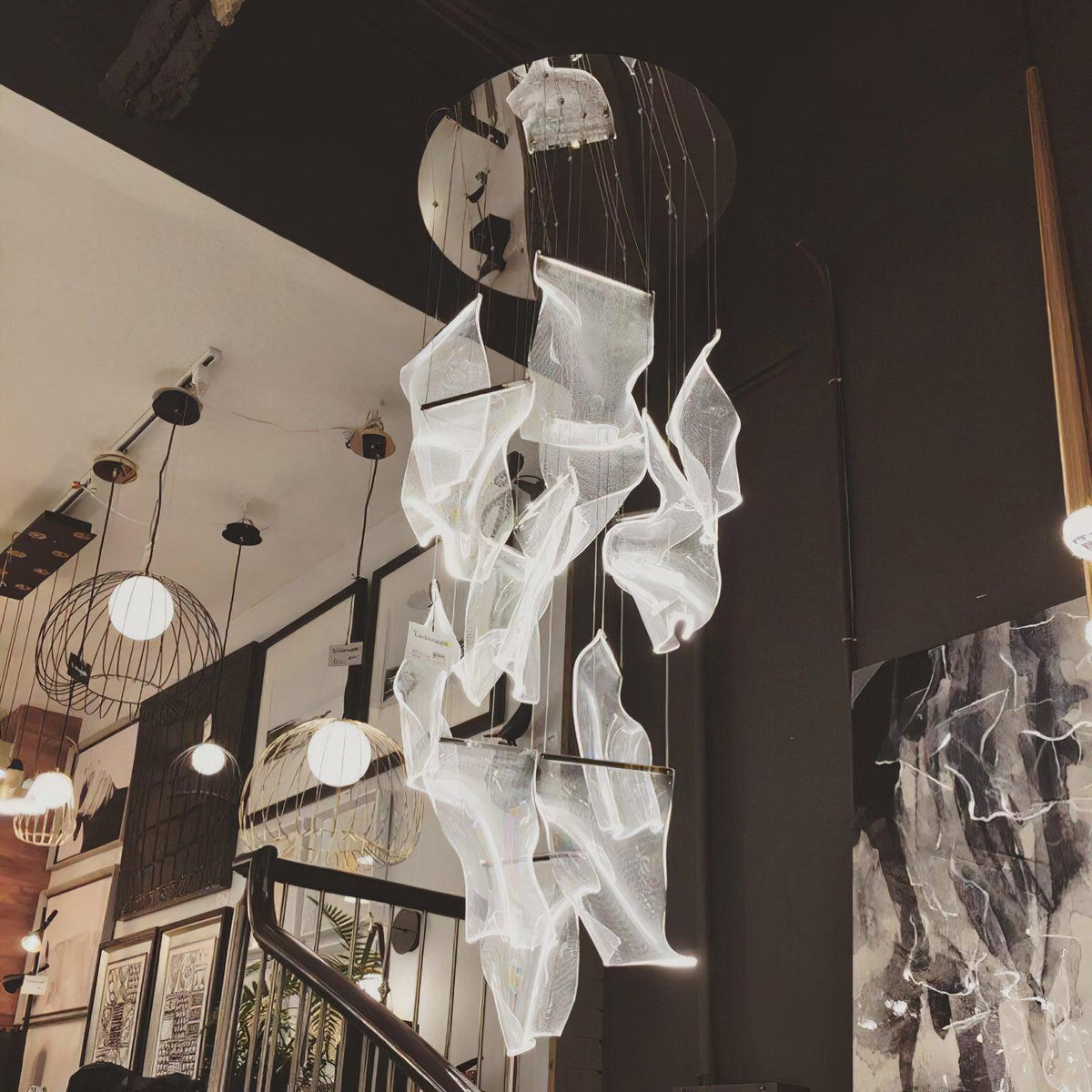

These are designed for stairwells, double-height entryways, and atriums. They cannot be shortened to fit a standard 8 or 9 foot room. For a normal ceiling, choose the 3 or 6 panel version at 59″.
Professional Installation
The large configurations are heavy multi-panel installations suspended on wires. Have an electrician confirm the ceiling fixing is rated for the load and secured into structure, not just into plasterboard.
Features

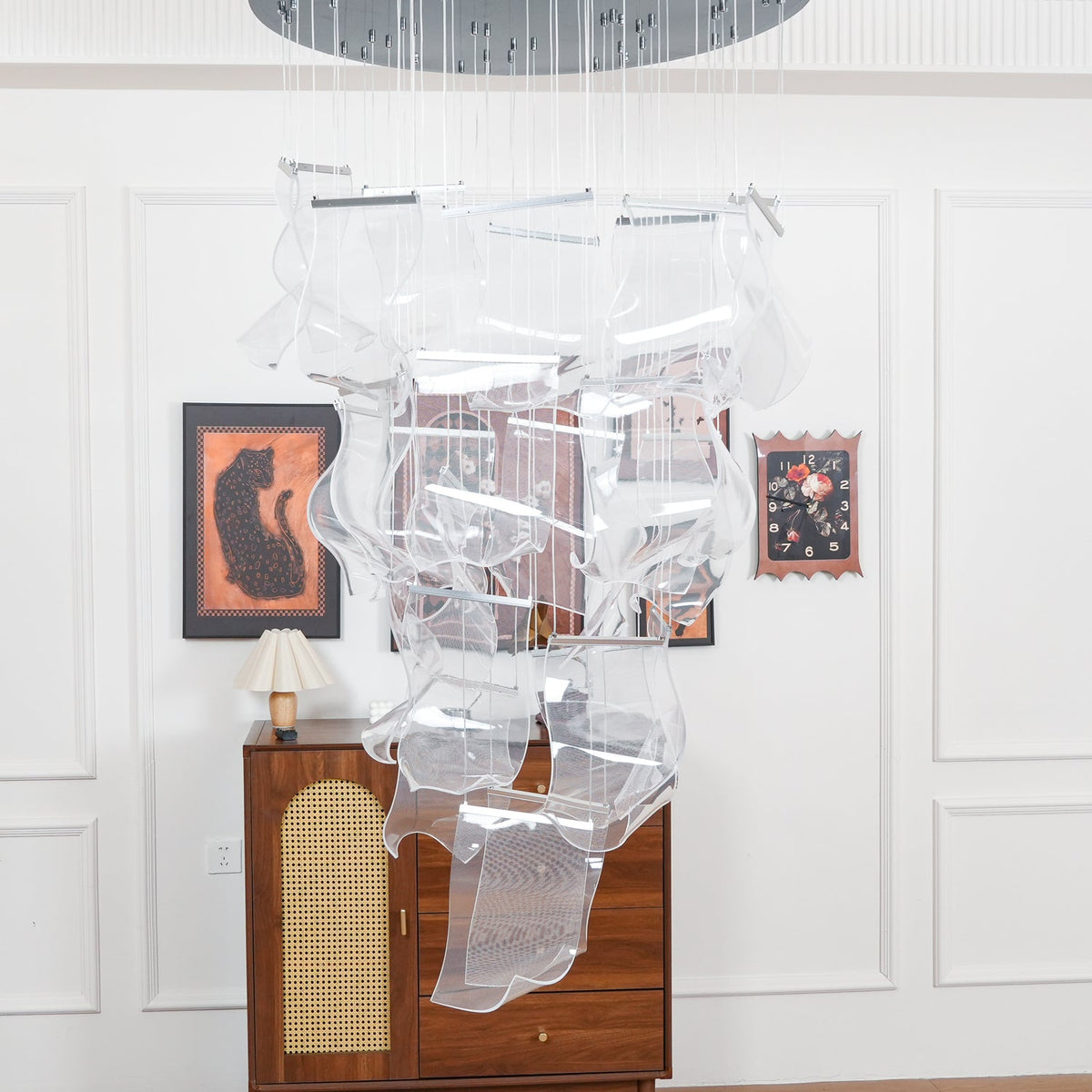

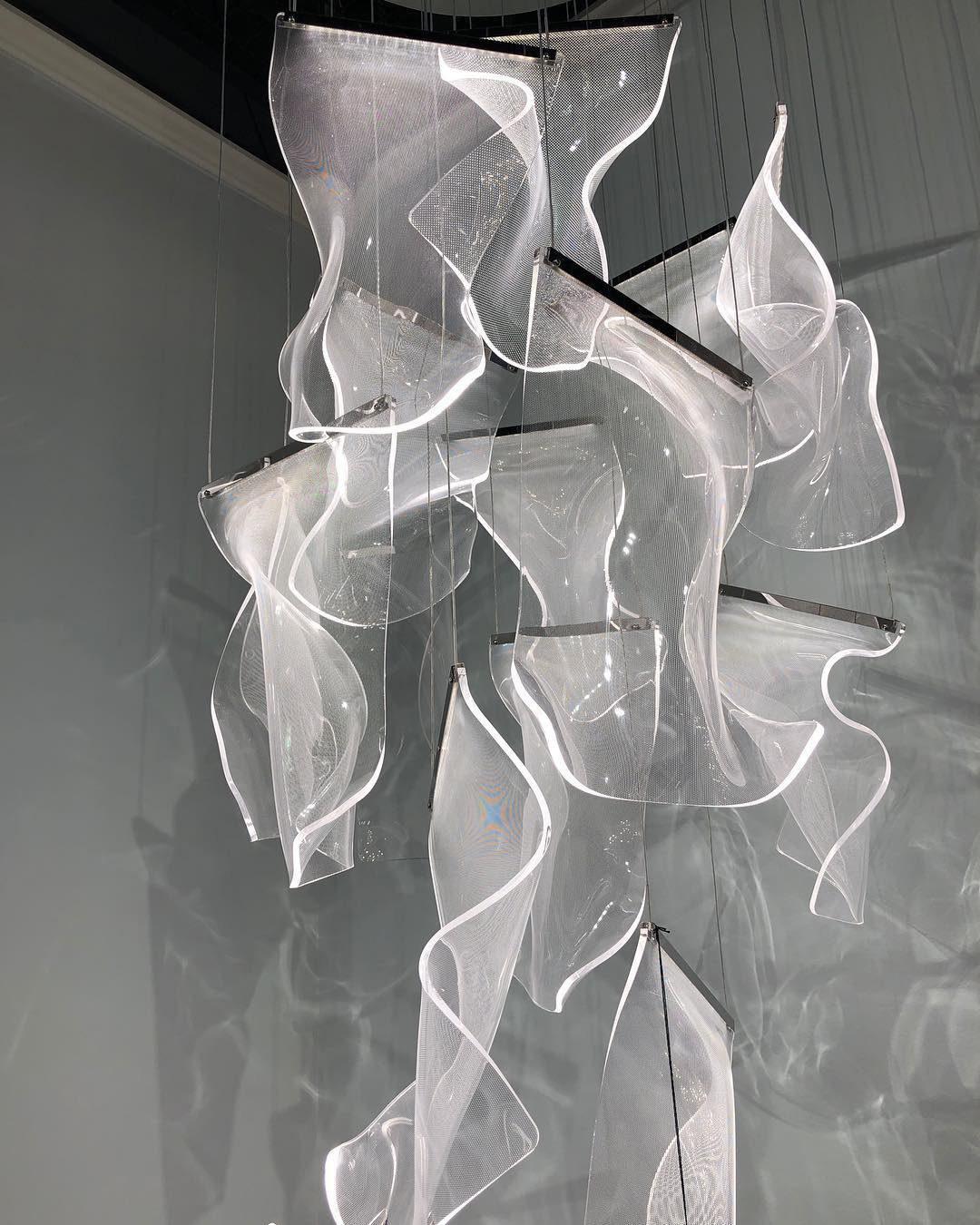

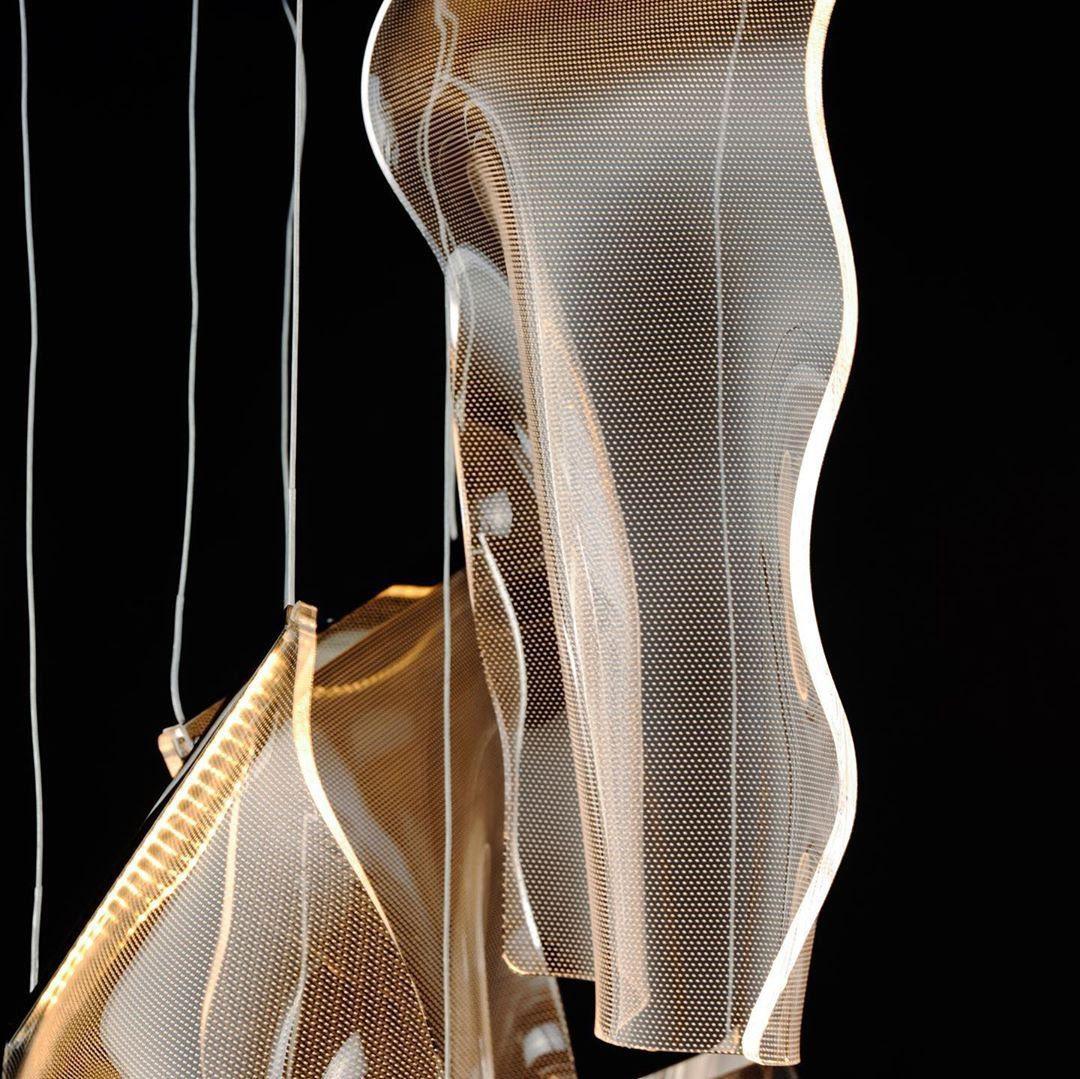

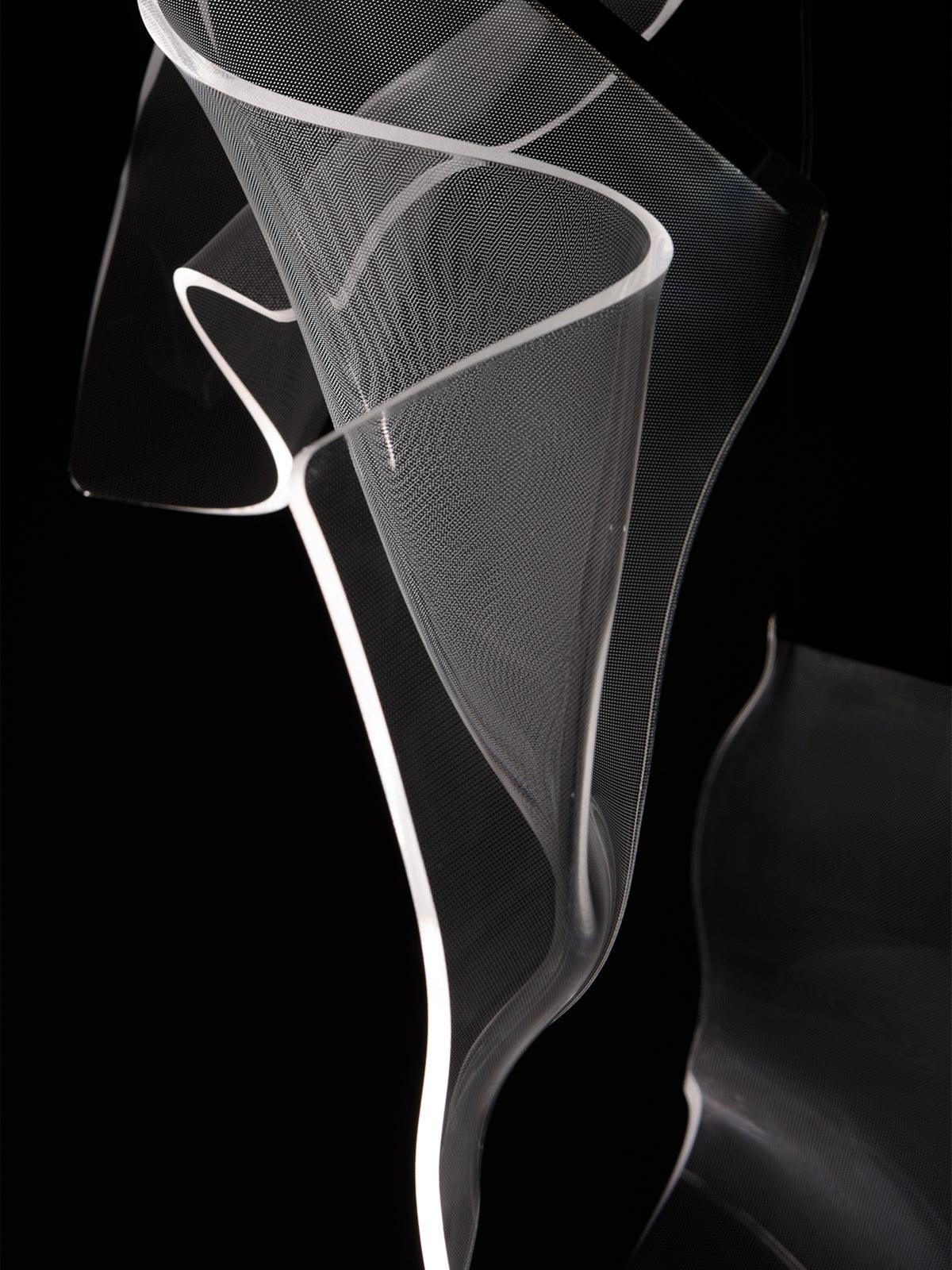

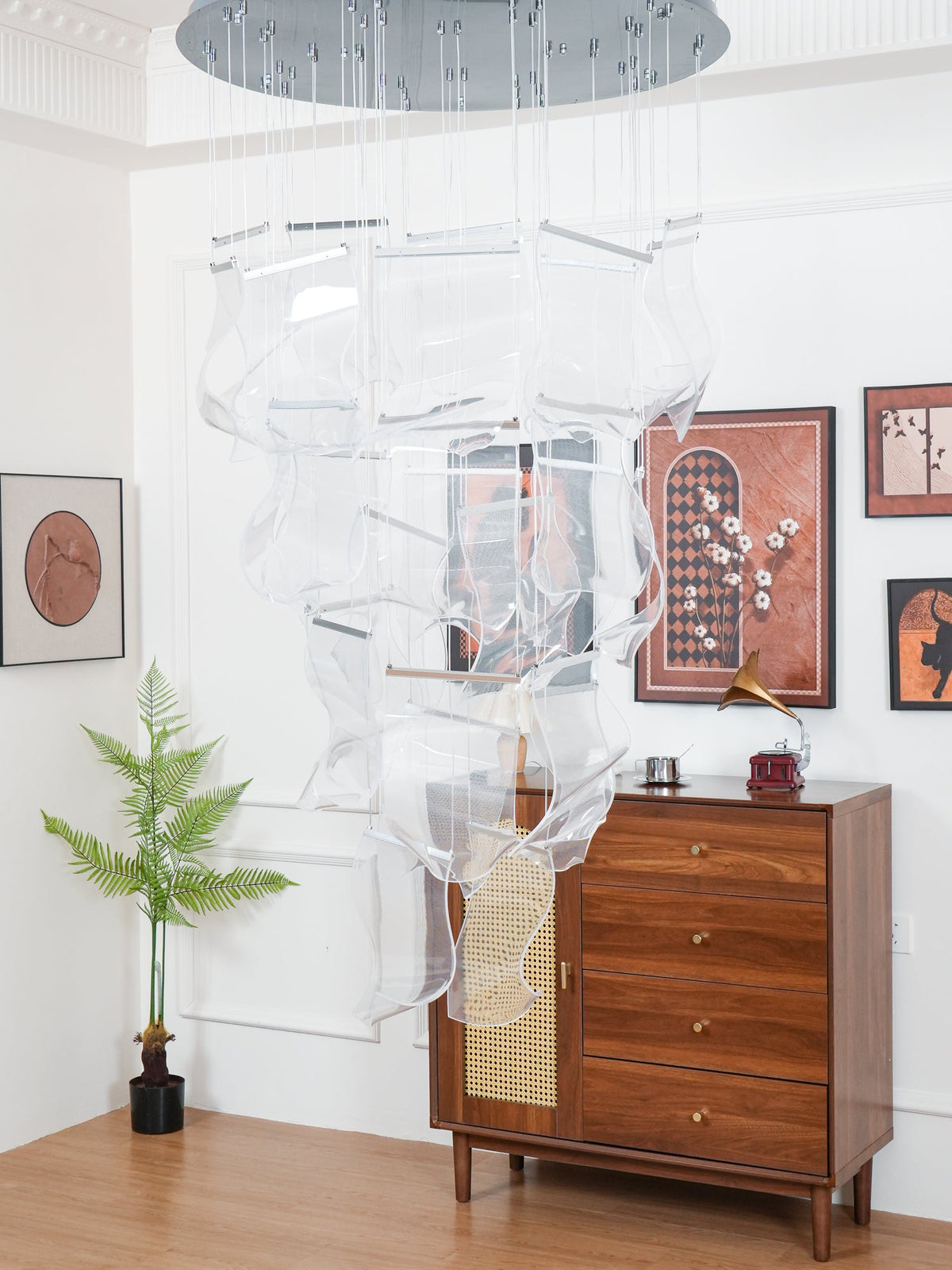

Hand-Shaped Acrylic
Each sheet formed individually, so the composition is never mechanically repetitive.

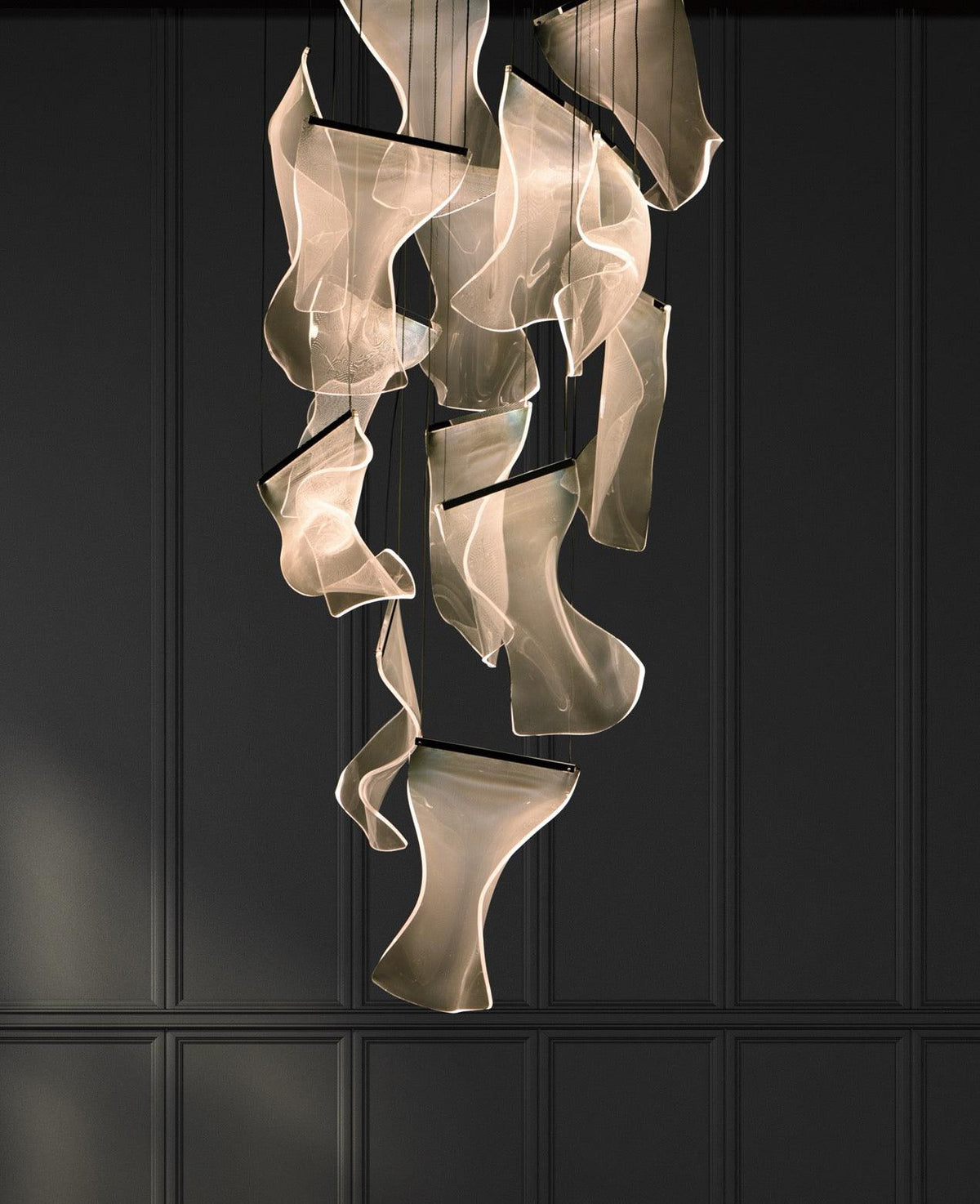

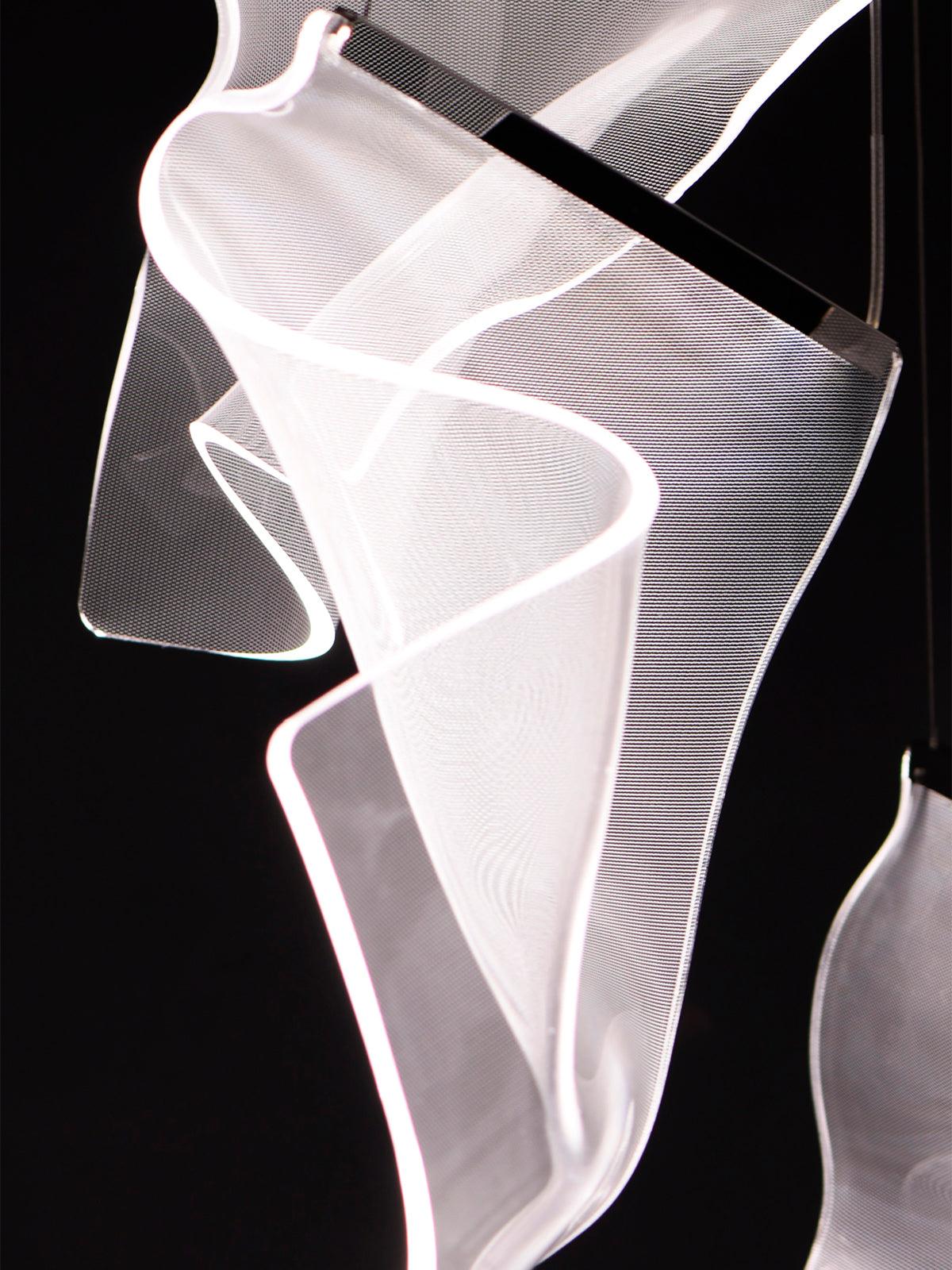

Hidden Light Source

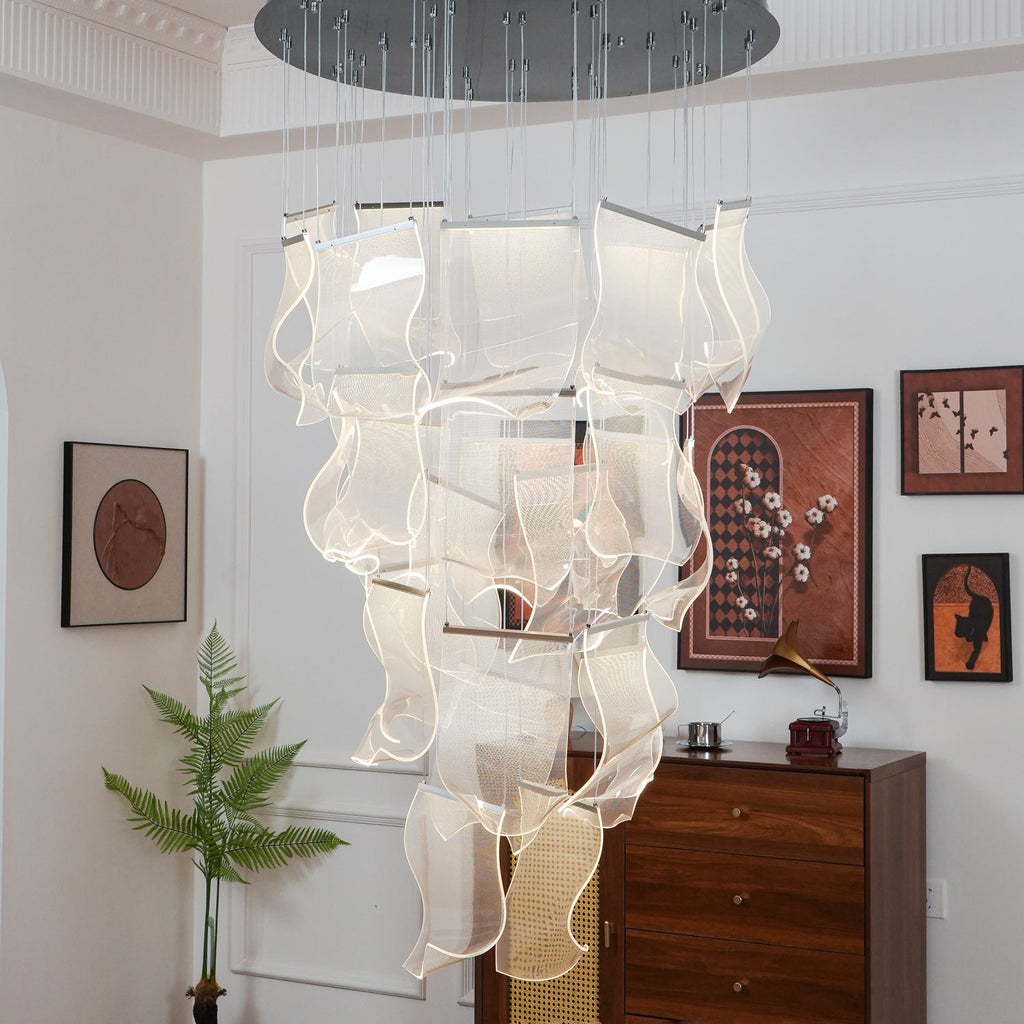

LEDs recessed in polished metal strips edge-light each panel, with no visible lamp.

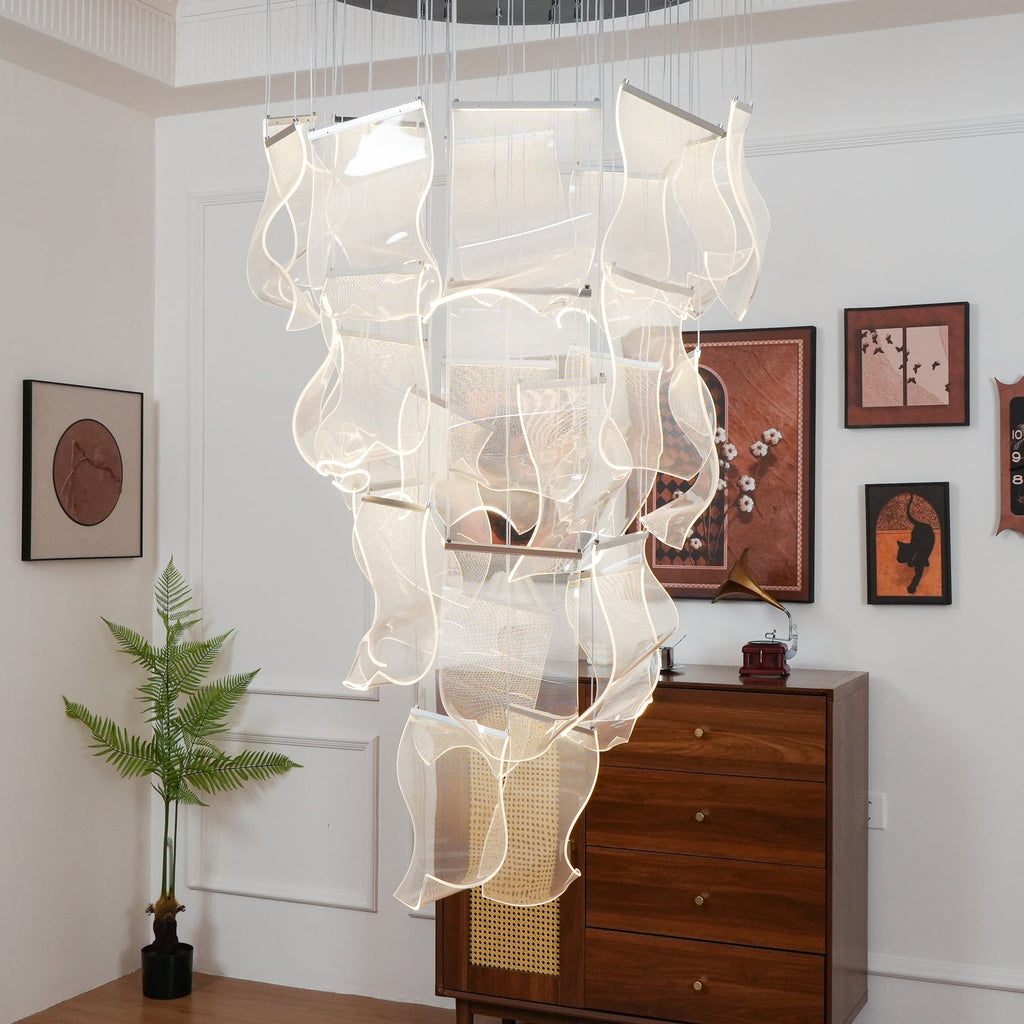

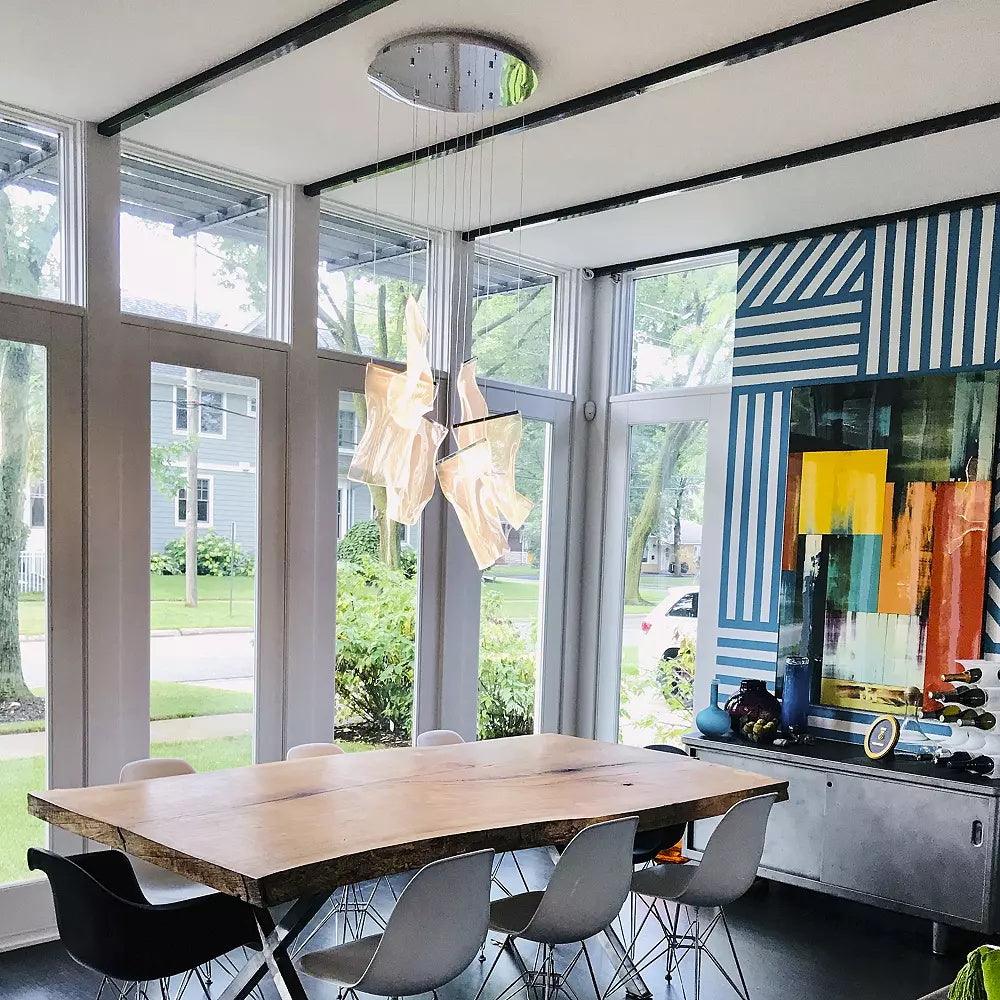

Scales to the Room
Six configurations from a dining accent to an architectural installation.
Configurations
| Panels |
Diameter |
Drop |
Power |
| 3 |
⌀13.8″ (35 cm) |
59″ (150 cm) |
~15W |
| 6 |
⌀19.7″ (50 cm) |
59″ (150 cm) |
~30W |
| 8 |
⌀23.6″ (60 cm) |
98.4″ (250 cm) |
~40W |
| 12 |
⌀27.6″ (70 cm) |
118.1″ (300 cm) |
~60W |
| 18 |
⌀31.5″ (80 cm) |
157.5″ (400 cm) |
~90W |
| 28 |
⌀39.4″ (100 cm) |
​157.5″ (400 cm) |
~140W |
Drop is the full hanging height from the ceiling, and it can be reduced at installation but not extended. Each panel draws roughly 5W.
Panel Size
Two Panel Sizes, Chosen Separately
Alongside the number of panels, you choose how large each individual sheet of acrylic is.
Small is W7.1″ × H10.2″ (18 × 26 cm) and Large is W9.1″ × H14.2″ (23 × 36 cm).
Large panels make the whole installation read as fuller and more sculptural; small panels keep it delicate and let more of the room show through. In a tall stairwell viewed from a distance, large usually reads better.
Finishes

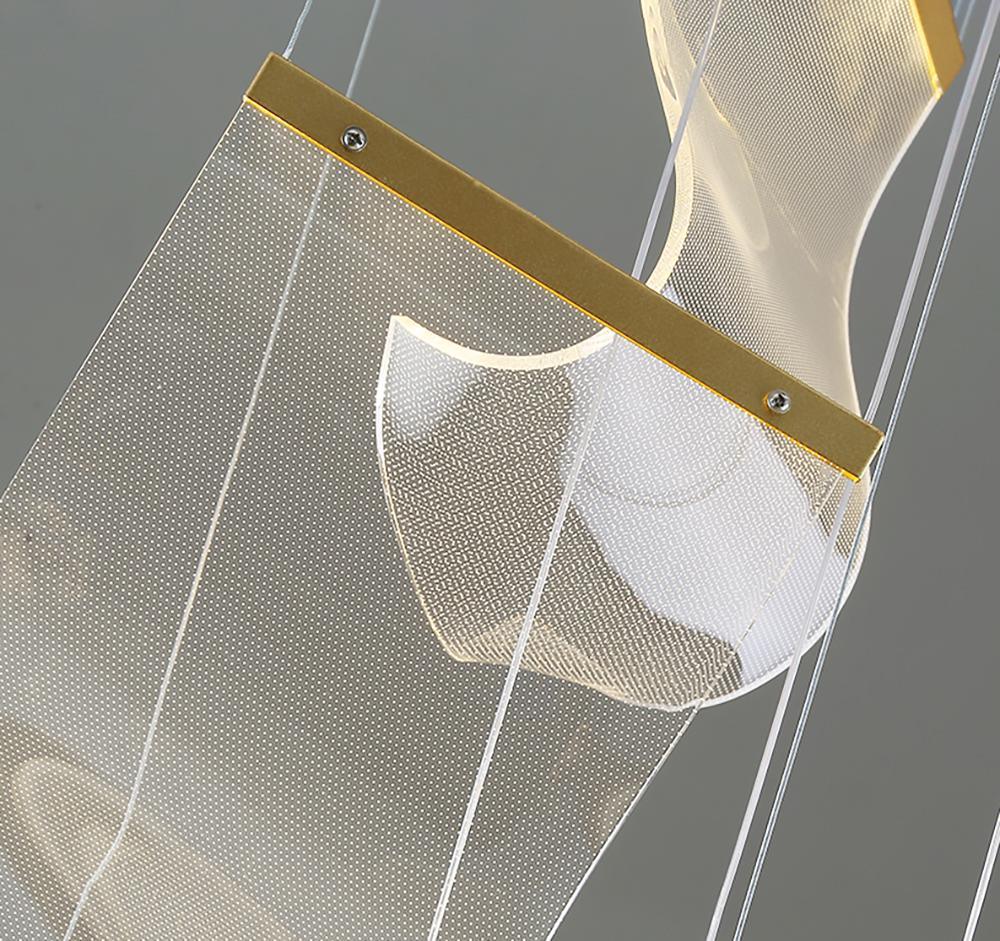

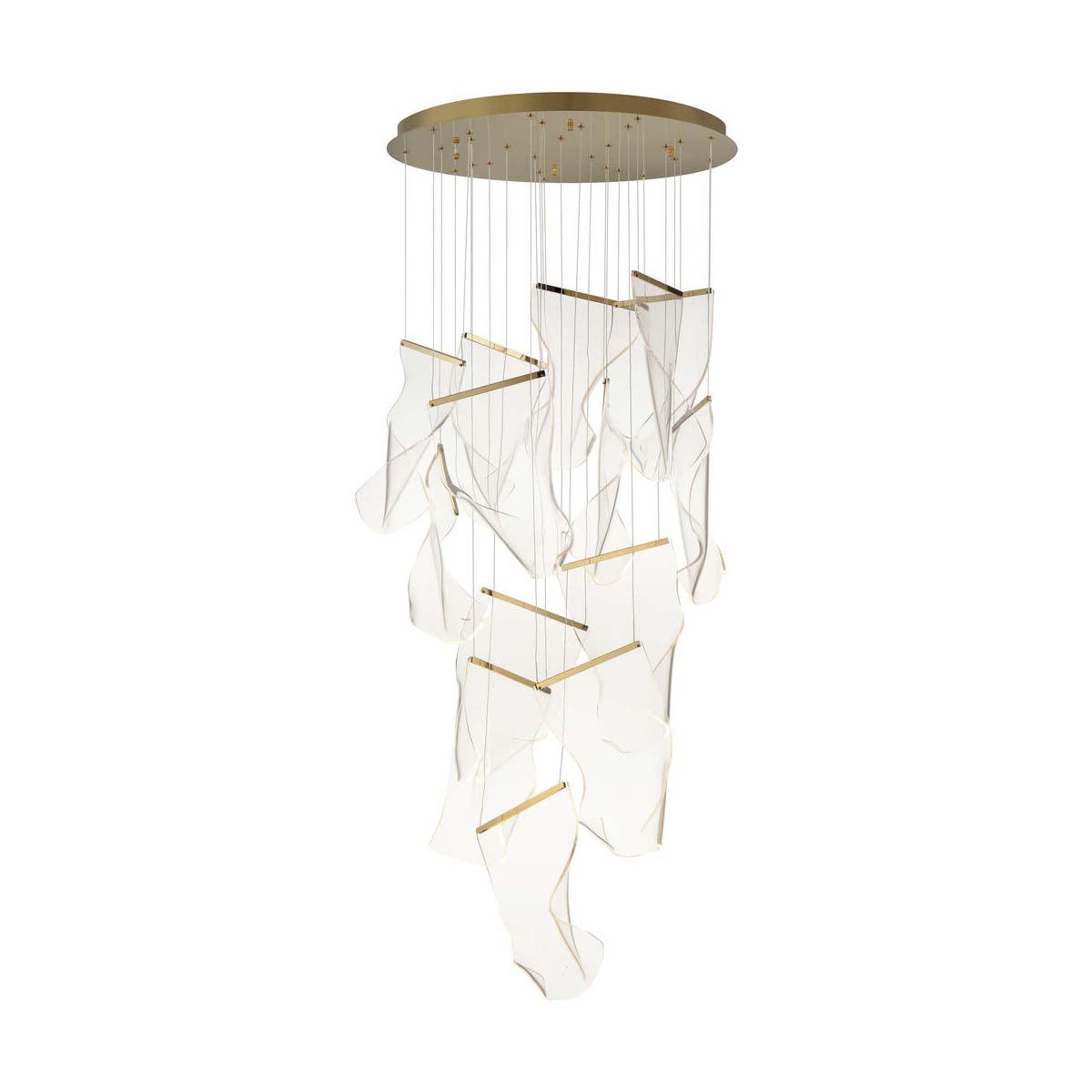

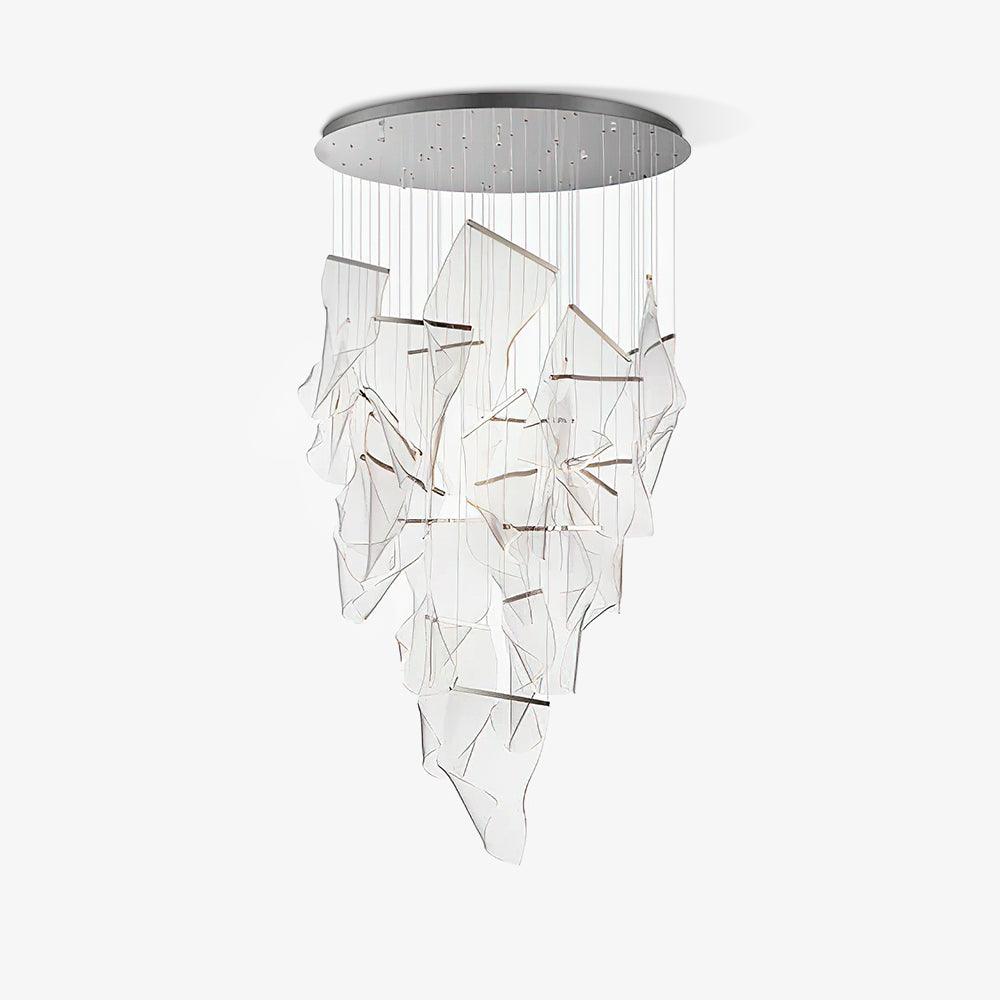

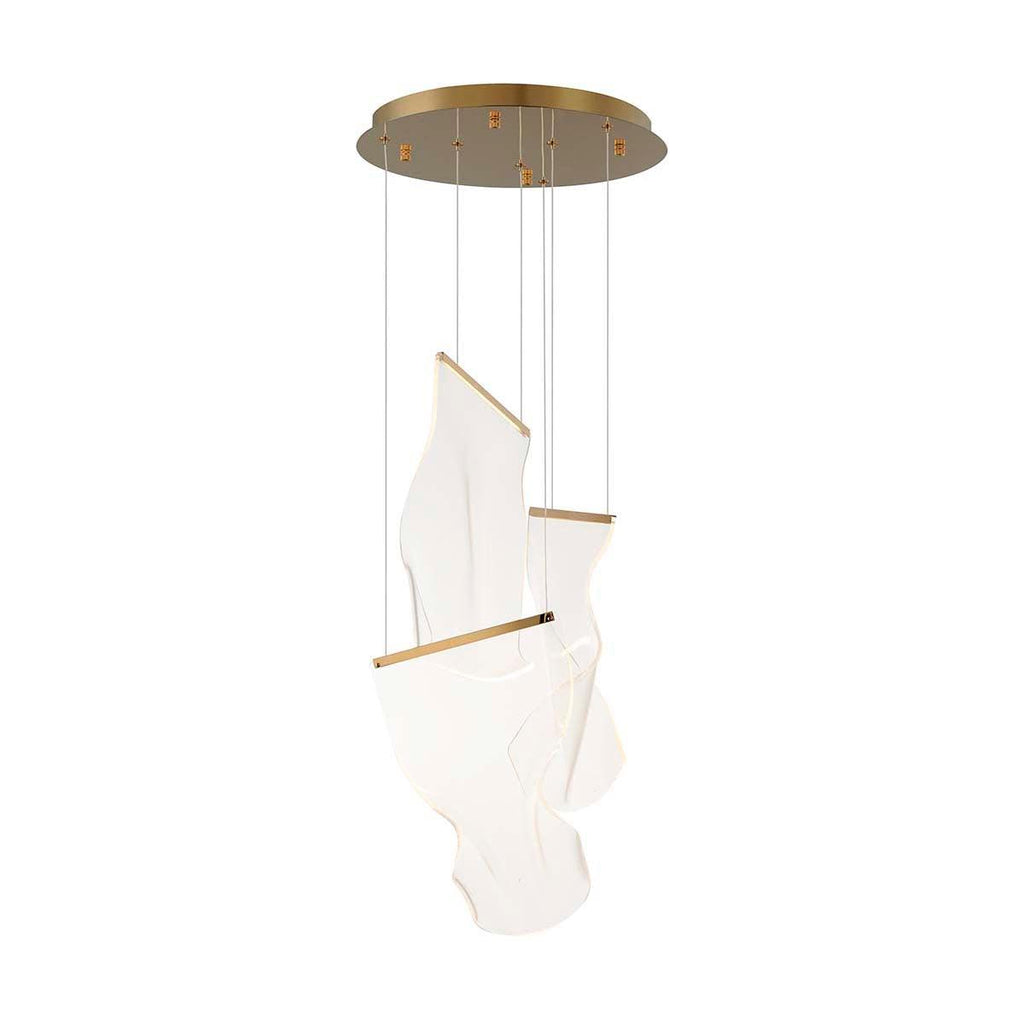

Gold or Silver
The acrylic panels are identical in both. Only the metal LED strip changes colour, so choose whichever matches the other metal in the room.
Specifications
| Configurations |
3, 6, 8, 12, 18, or 28 panels |
| Panel Sizes |
Small W7.1″ × H10.2″, or large W9.1″ × H14.2″ |
| Materials |
Hand-shaped clear acrylic with polished stainless steel strips |
| Finishes |
Gold or silver |
| Light Source |
Integrated LED, not user-replaceable |
| Power |
Approximately 5W per panel; 15W to 140W by configuration |
| Colour Temperature |
Warm white (3000K) as standard; 4000K and 6000K on request |
| Dimming |
Triac dimming on all versions; a TRIAC dimmer switch is required |
| Weight |
— |
| Mounting |
Ceiling, suspended on wires |
| Wiring |
Hardwired; licensed electrician required |
| Environment |
Dry indoor locations only |
Care
Cleaning Acrylic
Dust with a soft dry cloth, or wipe with a barely damp one and dry immediately.
Never use alcohol, ammonia, or window cleaner. They craze acrylic permanently, and on an edge-lit panel the damage shows as soon as the light is on.
Custom Options
Built to Your Space
We can adjust the drop, change the colour temperature, or build a configuration that is not listed here.
Send us your ceiling height and a photo of the space, and we will work out the drop and ship it ready to hang.
